Sets

Deliberate API exposes geographic information as a collection of sets. A set is associated with tags, contains properties, and shares relationships with other sets. Understanding these primitives and their functionality makes it easier to compose powerful queries.

What is a Set?

A set is a collection of cells representing a geographic area. These cells can be adjacent to each other, forming a contiguous geographic area. A set can also be a collection of multiple non-contiguous geographic areas. An example of a contiguous set is the state of South Carolina.

json
"uuid": "a0f477bd-bbda-4ec5-8de2-21fa130522af"
"name": "South Carolina"
"capital": "Columbia"
"statehood": "1788-05-23"
"abbreviation": "SC"
"gnis_feature_id": "1779799"

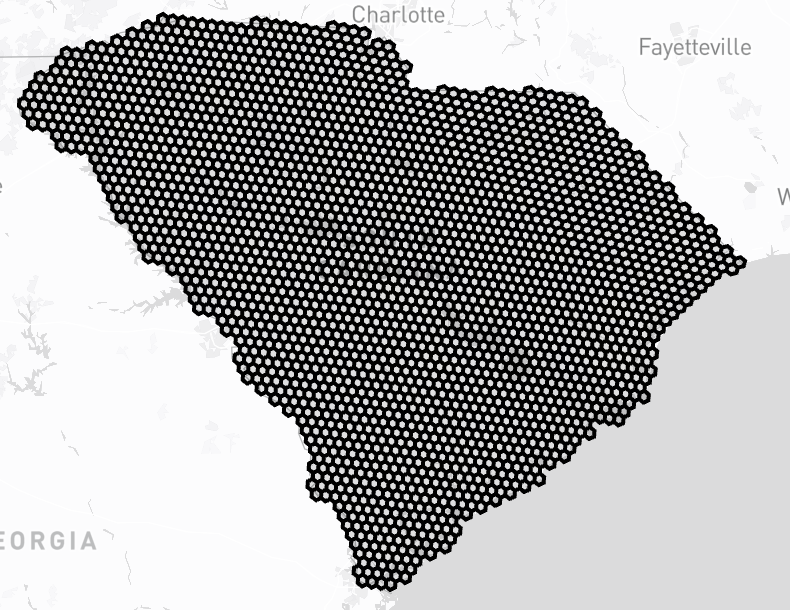

Geographic set representing the state of South Carolina

An example of a disjoint set is the South Carolina port complex which is made up of multiple ocean terminals.

json
"uuid": "1d973cdf-a8ff-4acf-a4cb-ca9062f9c67f"
"name": "Port of South Carolina"
"operator": "SC Ports Authority"
"port_code": "1601"

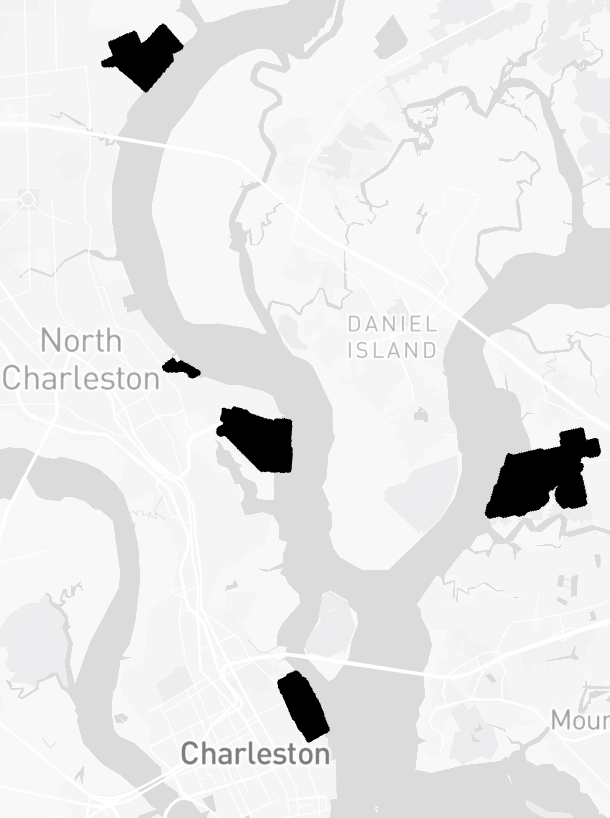

Geographic set representing the South Carolina ports complex

Tags

Tags are categorical labels that help organize and classify geographic sets. They act as buckets that can contain many sets, providing a flexible way to group related geographic areas together for efficient querying and filtering. Notice how the set that represents the state of South Carolina is associated with the us_state tag.

json
"uuid": "a0f477bd-bbda-4ec5-8de2-21fa130522af"
"name": "South Carolina"
"capital": "Columbia"
"statehood": "1788-05-23"
"abbreviation": "SC"
"gnis_feature_id": "1779799"

You could run a very simple query against Deliberate API to find all sets associated with the us_state tag and as expedcted, it would retunr 50 sets each representing a U.S. state.

Properties

Properties are key-value pairs that store descriptive information about geographic sets. They provide a way to attach metadata and filter sets based on specific attributes.

What are Properties?

A property is a key-value pair attached to a set that describes characteristics of that geographic area. Properties can include names, codes, numeric values like population, or any other relevant metadata.

json
"uuid": "80a25c7e-f0de-4be0-be9d-6826ac63c792"
"name": "Zion National Park"
"unit_code": "ZION"
"unit_type": "National Park"
"gnis_feature_id": "1455157"

Common Properties

Different types of geographic sets have different properties. Here are some examples of properties you'll find in pre-loaded sets:

U.S. States

  • name - Full state name (e.g., "California")
  • abbreviation - Two-letter code (e.g., "CA")
  • fips_code - Federal Information Processing Standard code

U.S. Counties

  • name - County name
  • state_abbreviation - Parent state code
  • fips_code - County FIPS code

National Parks

  • name - Park name
  • unit_code - Park identifier code
  • unit_type - Type of unit (e.g., "National Park")

Countries

  • name - Country name
  • iso_a2 - Two-letter ISO code
  • iso_a3 - Three-letter ISO code

Querying by Properties

Use the properties filter to find sets based on their property values. The most common operator is eq (equals):

json

Property Operators

Properties support various comparison operators for flexible filtering:

  • eq - Equals (exact match)
  • ne - Not equals
  • gt - Greater than (numeric values)
  • gte - Greater than or equal to
  • lt - Less than
  • lte - Less than or equal to
  • in - Matches any value in a list
  • contains - String contains substring

Numeric Comparison Example

Find countries with population greater than 100 million:

json

Using the "in" Operator

Find multiple states by name:

json

Properties vs Relationships

Important: Properties should not be used to store information about how one geographic area relates to another. For example, don't add a country property to a state set to indicate which country it belongs to. Instead, use relationships, which are a first-class concept in Deliberate API designed specifically for modeling geographic associations.

Custom Properties

When creating your own geographic sets, you can define any properties that are relevant to your application. Properties can be strings, numbers, booleans, or nested objects, giving you flexibility to model your domain-specific data.

Query Examples

This page demonstrates common patterns for querying the Deliberate API.

Find sets related to specific tags

Use the tags filter to narrow results to sets tagged with specific tags.

json
"limit": 10

What's at This Location?

The spatial contains_point filter lets you discover what geographic sets contain a given latitude/longitude coordinate. This is perfect for reverse geocoding—finding out what country, state, county, or other boundaries contain a specific location.

In this example, we're querying the coordinates for Los Angeles, California (34.0522°N, 118.2437°W). The API will return all sets that contain this point, such as the United States, California, and Los Angeles County. Try changing the coordinates to any location you're interested in!

json
"limit": 10

Find the Timezone for a Location

Combining tags with spatial queries enables powerful lookups. Here we're finding which timezone contains a specific location—in this case, New York City (40.7128°N, 74.0060°W).

By filtering for sets tagged with timezone and using the contains_point spatial filter, we can instantly determine the timezone for any coordinate. This is useful for applications that need to schedule events, display local times, or handle time-sensitive operations across different regions.

json
"limit": 1

Find All National Parks in Utah

Relationships let you query geographic sets based on their spatial associations with other sets. In this example, we want to find all national parks that are geographically contained within the state of Utah.

The query works in two steps: First, we target sets tagged with us_national_park. Then we use a relationships filter with type SUBSET and direction outbound to find parks that are subsets of Utah. This returns famous parks like Zion, Arches, Bryce Canyon, and more.

json
"limit": 10

Query Reference

Complete API reference coming soon. Check out the query examples above to get started!
